Intro
Why should I update my Lenovo Tablet M9 with a custom Firmware?
The facts:
- The original ROM is slow
- You cannot use the secondary SD card to install your apps
This is not an easy process and you can risk to brick your device. I had 2 times this feeling.
Let’s start
1) Enable developer settings -> Enable OEM unlocking
You need to enable usb-debugging via Settings/About phone/Version, Tap 7x on build number
Go to Settings/Additional settings/Developer options, enable “OEM unlock” and “USB Debugging”
2) Install and configure the mtkclient
https://github.com/bkerler/mtkclient
Ubuntu:
sudo apt install python3 git libusb-1.0-0 python3-pip libfuse2 python python3.12-venv
Install Pip requirements and mtkclient
Login as normal user
python3 -m venv ~/.venv
git clone https://github.com/bkerler/mtkclient
cd mtkclient
. ~/.venv/bin/activate
pip install -r requirements.txt
pip install .
Install rules
sudo usermod -a -G plugdev $USER
sudo usermod -a -G dialout $USER
sudo cp mtkclient/Setup/Linux/*.rules /etc/udev/rules.d
sudo udevadm control -R
sudo udevadm trigger
Reboot your computer
3) Brom mode
Login as normal user
. ~/.venv/bin/activate
python mtk_gui.py
How to go in BROM mode safely:
In my case I had a good reproducable connection (in Brom mode) with the following method:
- Start MTK-Client GUI (used Re LiveDVD)
- Shutdown Tablet
- Press and hold VOL+ and VOL- while connecting USB
- Wait till MTK-Client shows connected (actually it was some memory adress 0X00000x that appeared I don’t remember exactly)
- Release VOL+ and VOL-
Also worth to mention that the MTK-Client only recognizes *.bin files so one must rename them if Magisk saved them as *.img files.
Alternative:
Starting the mtk gui, reboot the device and connect it via USB while booting, then on lenovo boot screen hold all 3 buttons for like 3s.

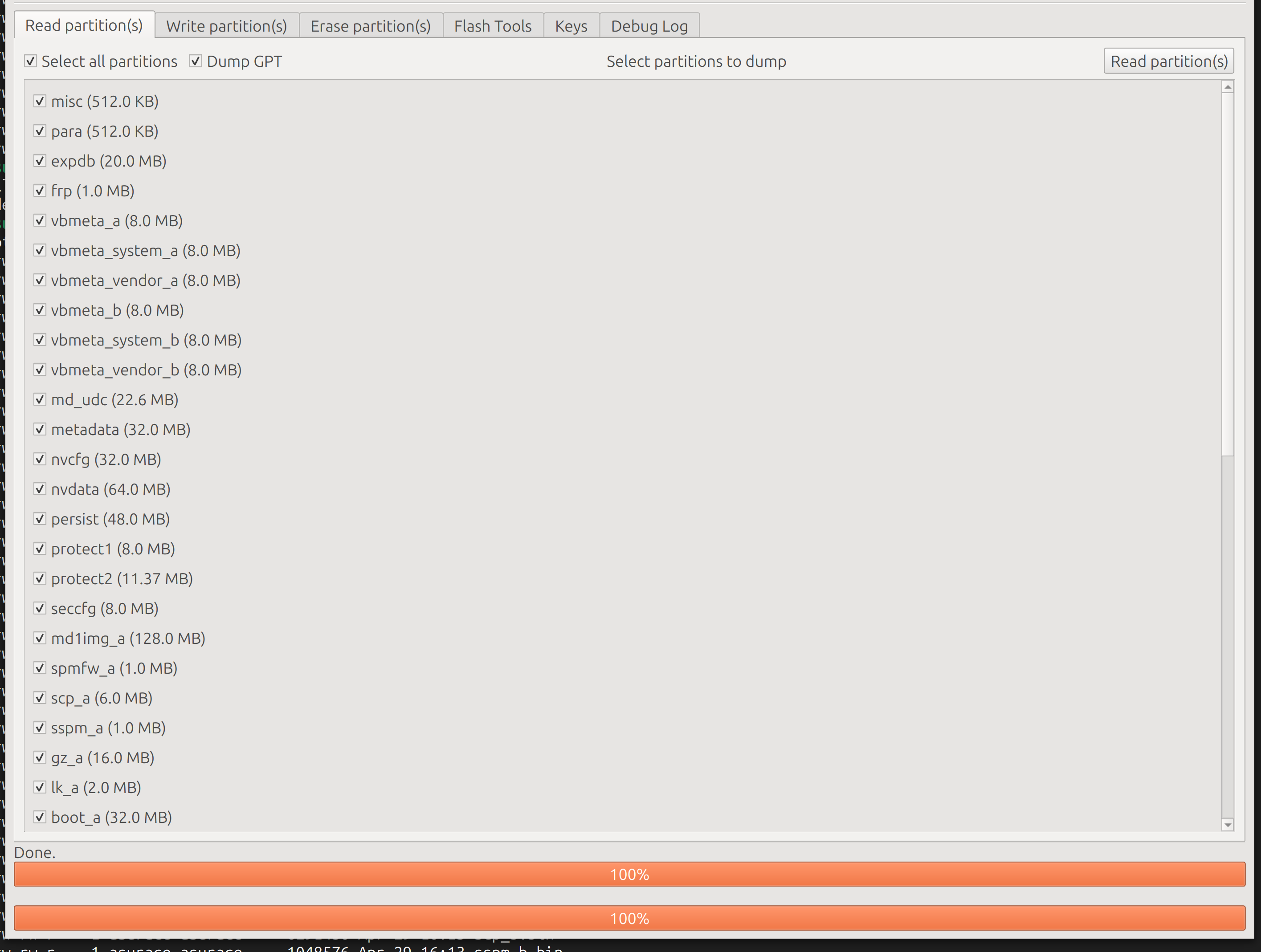

DOWNLOAD At least boot_a, boot_b, vbmeta_a, vbmeta_b

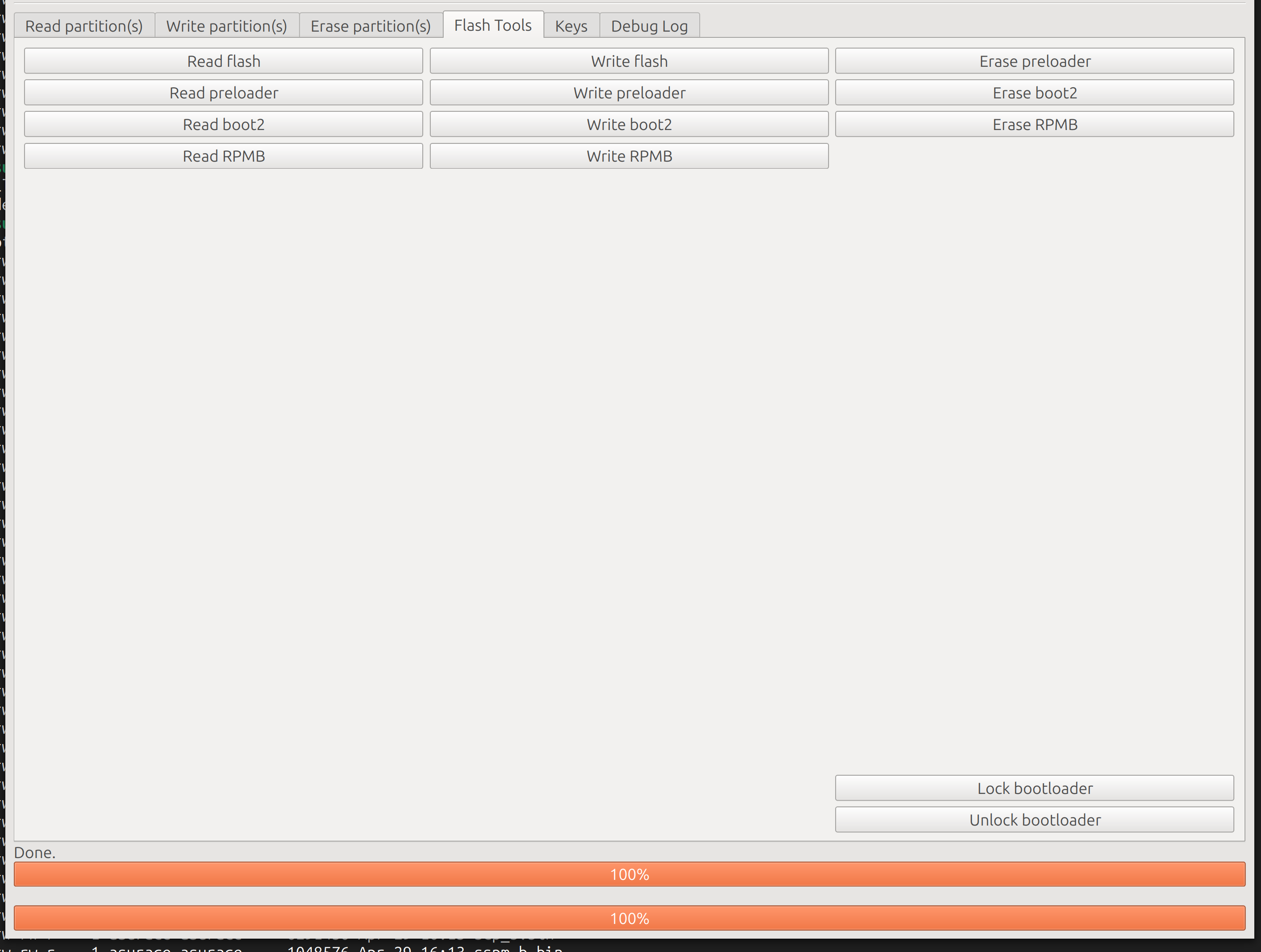

UNLOCK THE BOOTLOADER via gui or cmdline
At this point detach the usb cable and reattach.
A message is showed saying that the device is untrusted. To continue the boot press the power button.
Close the MTKclient.
4) Once bootloader is unlocked download your GSI of choice

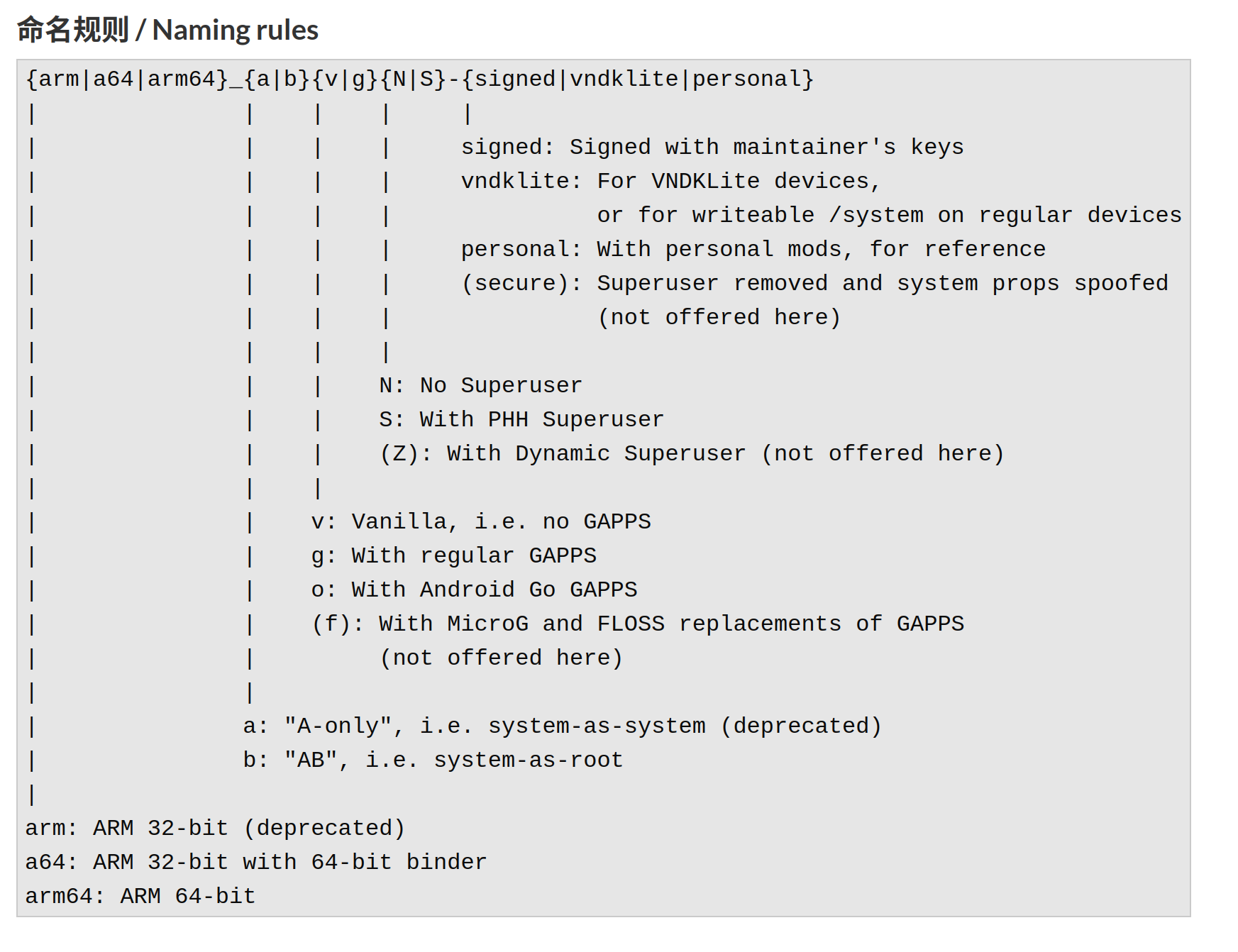

Which image to use?
See https://sourceforge.net/projects/andyyan-gsi/files/
I am currently using lineage-21.0-20241018-UNOFFICIAL-arm64_bgN-signed. Keep in mind this is an A/B device with a dynamic super partition so make sure you download the proper GSI. Also since this is a MTK device you may have better compatibility with AndyYan or ponces builds. Lineage21 so far has been working great for me
Download it from https://sourceforge.net/projects/andyyan-gsi/files/lineage-21-td/History/
Directly: https://sourceforge.net/projects/andyyan-gsi/files/lineage-21-td/History/lineage-21.0-20241018-UNOFFICIAL-arm64_bgN-signed.img.gz/download
5) Download vbmeta.img from google
(https://dl.google.com/developers/android/qt/images/gsi/vbmeta.img – empty one) or take it from your Lenovo PC software dump, place vbmeta.img and extract and rename your GSI image system.img and place in your ADB folder
6) Open up CMD/Powershell and cd into your ADB folder
Install fastboot and adb packages.
On Ubuntu:
sudo apt install fastboot adb
To boot to fastboot: plug in USB cable then press and hold power + up volume until you see the tablet booting. The tablet gives you a screen and you need to choose volume down. Confirm that you are connected with command line “fastboot devices” and you should see your device listed.
fastboot getvar all
a) Enter bootloader
fastboot --disable-verification flash vbmeta vbmeta.img
Output example:
Rewriting vbmeta struct at offset: 0
Sending 'vbmeta_b' (8192 KB) OKAY [ 5.139s]
Writing 'vbmeta_b' OKAY [ 0.150s]
Finished. Total time: 5.406s
b) Enter fastboot
fastboot reboot fastboot
fastboot erase system
Output example:
Erasing 'system_a' OKAY [ 0.781s]
Finished. Total time: 0.790s
fastboot delete-logical-partition product_b
Output example:
Deleting 'product_b' OKAY [ 0.011s]
Finished. Total time: 0.011s
fastboot flash system system.img
Output example:
Resizing 'system_a' OKAY [ 0.005s]
Sending sparse 'system_a' 1/9 (262108 KB) OKAY [ 6.862s]
Writing 'system_a' OKAY [ 1.676s]
Sending sparse 'system_a' 2/9 (262048 KB) OKAY [ 6.760s]
Writing 'system_a' OKAY [ 1.700s]
Sending sparse 'system_a' 3/9 (261996 KB) OKAY [ 6.774s]
Writing 'system_a' OKAY [ 1.677s]
Sending sparse 'system_a' 4/9 (261948 KB) OKAY [ 6.882s]
Writing 'system_a' OKAY [ 1.698s]
Sending sparse 'system_a' 5/9 (261968 KB) OKAY [ 6.965s]
Writing 'system_a' OKAY [ 1.699s]
Sending sparse 'system_a' 6/9 (262060 KB) OKAY [ 6.828s]
Writing 'system_a' OKAY [ 1.684s]
Sending sparse 'system_a' 7/9 (262104 KB) OKAY [ 6.791s]
Writing 'system_a' OKAY [ 1.721s]
Sending sparse 'system_a' 8/9 (260422 KB) OKAY [ 6.777s]
Writing 'system_a' OKAY [ 1.702s]
Sending sparse 'system_a' 9/9 (162296 KB) OKAY [ 4.193s]
Writing 'system_a' OKAY [ 1.515s]
Finished. Total time: 74.434s
c) Enter recovery:
Either directly in the Fastbootd menu
or Press Volume Up, Volume Down, and Power buttons simultaneously until the Lenovo logo appears
Wipe data/factory reset
Reboot, profit wait at least 10-20 secs before something happens
If you want root:
a) Patch the boot.img you got from the stock firmware with Magisk on your tablet
b) Place patched .img back into your ADB folder and rename boot.img
c) Enter bootloader
fastboot flash boot boot.img
fastboot reboot
Done
Follow Info here https://github.com/bkerler/mtkclient#root-the-phone-tested-with-android-9—12:
python mtk.py r boot,vbmeta boot.img,vbmeta.img
https://xdaforums.com/t/lenovo-tab-m9-unlocking-bootloader.4588191/post-89067455
dump all 4
patch and flash boot_a/_b
flash vbmeta.img.empty from the repo for vbmeta_a/_b
Order doesn’t matter, just got to flash all 4 before reboot.
Not tested
(you can skip the following Lenovo LMSA steps if you do not need root)
Download and install Lenovo Software Fix: https://support.lenovo.com/us/en/downloads/ds101291-rescue-and-smart-assistant-lmsa
Go through the setup and download the latest firmware. Make sure it matches the firmware currently installed on your tablet
Take the vbmeta.img and boot.img from C:\ProgramData\RSA\Download\RomFiles\TB310FU_S000889_240913_ROW\image and place in a folder along with your ADB files
Problems:
3.5 mm Audio Jack problem:
https://xdaforums.com/t/lenovo-tab-m9-unlocking-bootloader.4588191/post-89815292
Solutions: config / phh settings / misc Features/ enable “use alternate way” and “disable audio effects” / reboot
or:
https://xdaforums.com/t/lenovo-tab-m9-unlocking-bootloader.4588191/post-89816278
–Phh Settings -> Misc features–
-
Enable “use alternate way to detect headsets” (reboot, if 3.5 jack still isn’t working then use termux app and type su to grant root and then run this command: setprop persist.sys.overlay.devinputjack true
-
Enable” Rotation perf hint instead of touch”
-
Enable Mediatek GED KPI support
-
Enable “Disable SF GL backpressure”
-
Enable “Disable SF HWC backpressure”
-
Enable “Use System Wide BT HAL”
-
Remove telophony subsystem
For debloating with universal debloater I ran into issue were tablet would restart after unlocking
There is a fix that disables checking for firmware updates though. https://github.com/0x192/universal-android-debloater/issues/713#issuecomment-1566441573
fastboot commands fails
https://xdaforums.com/t/fastboot-flash-system-partition-not-found.3992977/
At point 5 using fastboot commands:
fastboot erase system
Error example:
Erasing 'system' (bootloader) system
FAILED (remote: 'Partition table doesn't exist')
fastboot: error: Command failed
or
fastboot delete-logical-partition product_b
Error example:
Deleting 'product_b' FAILED (remote: 'unknown command')
fastboot: error: Command failed
or
fastboot flash system system.img
Error example:
Warning: skip copying system image avb footer (system partition size: 0, system image size: 140724689237784).
Sending sparse 'system' 1/18 (131052 KB) OKAY [ 82.053s]
Writing 'system' FAILED (remote: 'This partition doesn't exist')
fastboot: error: Command failed
You need to go in fastboot with the command:
fastboot reboot fastboot
fastboot flash system system.img error
fastboot flash system system.img
Error example:
Resizing 'system_a' FAILED (remote: 'Not enough space to resize partition')
fastboot: error: Command failed
Solution:
fastboot delete-logical-partition system_ext_a
fastboot delete-logical-partition system_ext_b
fastboot delete-logical-partition product_a
fastboot delete-logical-partition product_b
Every seems fine but the tablet never load and it stucks to the lenovo screen
One possible cause is the wrong vbmeta.img.
I used the vbmeta_a.bin as my vbmeta.img and this didn’t work. The tablet was always hanging on the Lenovo boot screen.
Use the empty vbmeta.img referred in point (4)
Fix the alert message that the tablet is not secure
https://xdaforums.com/t/flashing-twrp-and-lineage-to-an-already-rooted-lenovo-tab-m-9.4671584/post-89863306
fastboot oem cdms
